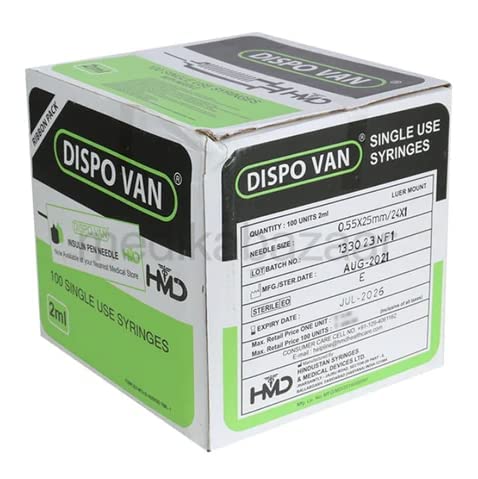

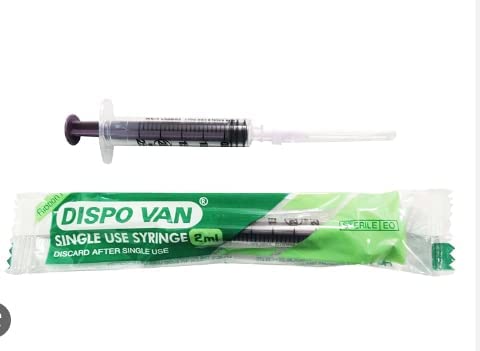

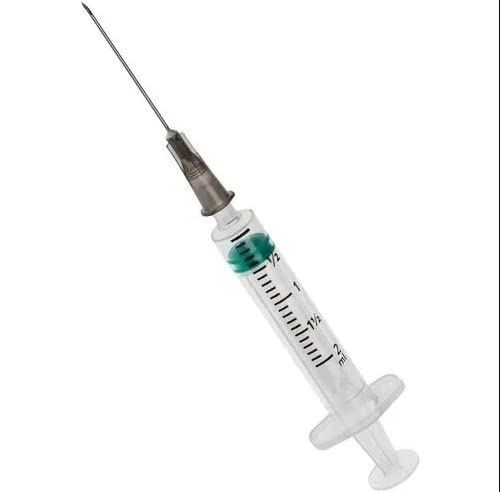

DISPOVAN SYRINGE 2ML (24,22 Gauge |1 Inch Needle)

PRODUCT DISCRIPTION:-

The Dispovan 2ml syringe with 24G or 22G 1-inch needle is a sterile, single-use device designed for accurate drug delivery and fluid withdrawal. Its ultra-sharp needle ensures minimal pain, while the low dead space design reduces medication wastage. Made from medical-grade materials and EO sterilized, it meets CE and ISO standards, making it ideal for hospitals, clinics, and diagnostic use.

🧠 Clinical Theory & Design Rationale

1. Purpose & Volume Calibration

The 2ml capacity is ideal for administering moderate volumes of medication, including antibiotics, analgesics, vaccines, and anesthetics. It supports both intramuscular (IM) and intravenous (IV) routes, depending on the needle gauge and length.

2. Needle Gauge Selection (24G / 22G)

• 24G (0.55mm) and 22G (0.70mm) needles are chosen based on the viscosity of the medication and the injection route.
• 22G needles are preferred for thicker fluids and IM injections.
• 24G needles are suitable for thinner medications and IV or subcutaneous use.
• The 1-inch length ensures deep tissue penetration for IM injections while maintaining control for IV access.

3. Low Dead Space Design

Dead space refers to the residual volume left in the syringe after injection. Dispovan’s low dead space design:

• Minimizes medication wastage
• Ensures accurate dosing
• Reduces cost per dose in high-volume clinical settings

4. Sterilization Method: Ethylene Oxide (EO)

EO sterilization is used because:

• It penetrates the syringe barrel and needle lumen effectively
• It kills bacteria, viruses, and spores without damaging plastic components
• It ensures long shelf life and microbial safety

5. Material Science

• Medical-grade polypropylene is used for the barrel, offering:
  • Transparency for visual dose verification
  • Chemical inertness to prevent drug interaction
  • Structural integrity under pressure
• The rubber plunger ensures smooth movement and leak-proof performance

6. Graduation & Measurement Accuracy

• The barrel is marked with bold, legible graduations for precise measurement
• Supports accurate titration of medication, critical in pediatric and geriatric care

7. Single-Use Safety

• Prevents cross-contamination and nosocomial infections
• Supports infection control protocols in hospitals and clinics
• Individually packed for aseptic handling

8. Regulatory Compliance

• CE Mark confirms conformity with European health and safety standards
• ISO 13485 certification ensures quality management in medical device manufacturing
• MD labeling confirms classification as a regulated medical device

🏥 Clinical Use Cases

• General medicine: Antibiotic and analgesic injections
• Vaccination programs: Routine immunizations
• Emergency care: Rapid drug delivery in trauma or shock
• Diagnostic procedures: Blood sampling or IV access
• Anesthesia: Local or general agent administration
